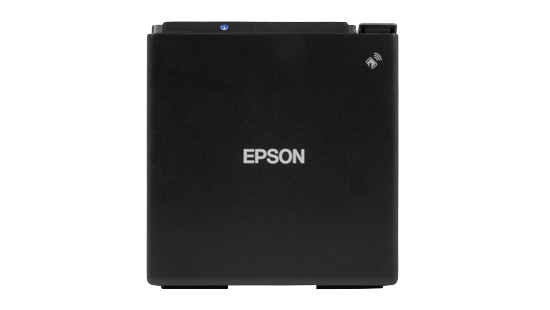

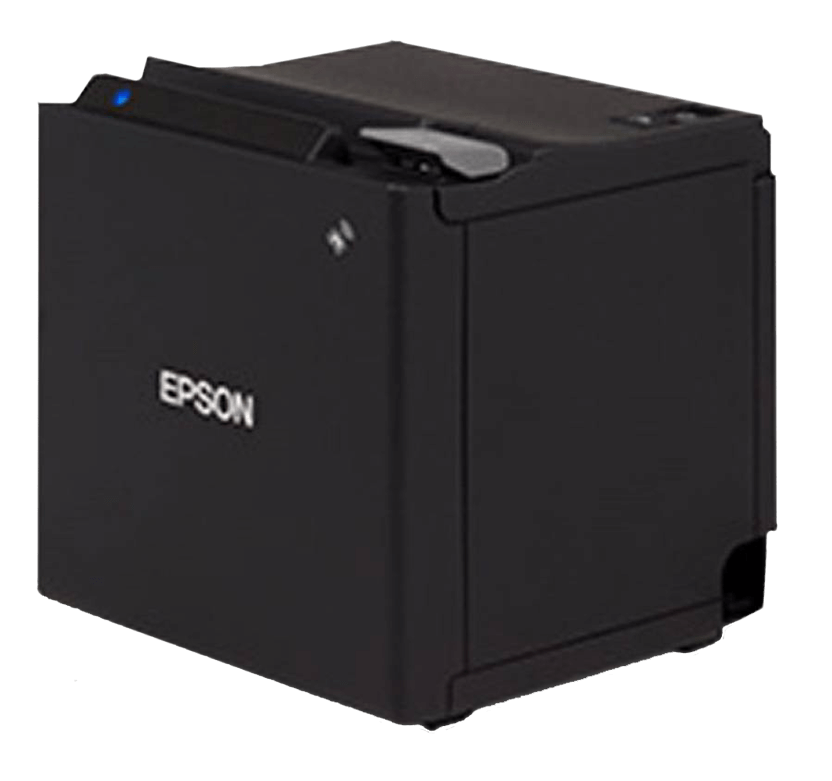

Epson TM-M30
With its petite structure, Epson TM-M30 is ideal for the environments with space constraints. A Thermal Printer it is used with Android tablet integrated with CubeOne POS software.
-
ROM
64 MB
NV Area
User NV 1 KB, NV Graphics 384 KB
Audible Alert
External Buzzer (Option)
LED Indicators
Blue LED - On = Power
Orange LED - Error and/or Paper Out
Software
TM Utility (iOS, Android), TM-m30 Utility (Windows Desktop), EpsonNet Config (Win, Mac), TM Bluetooth Connector, Deployment Tool, Monitoring Tool
Font
ANK Font A: 12 × 24 (Default); ANK Font B: 10 × 24; Kanji Font: 24 x 24
Character Size (W x H):
ANK Font A: 1.25 × 3 (Default); ANK Font B: 1.13 × 3; Kanji Font: 3 x 3
Character Set
95 Alphanumeric, 18 International, 128 x 43 Graphic
Bar code: UPC-A, UPC-E, JAN8 / EAN 8, JAN13 / EAN13, Code39, Code93, Code128, ITF, CODABAR (NW-7), GS1-128, GS1 DataBar 2D Symbol: PDF417, QR code, Maxi Code, Data Matrix, Aztec
Two-dimensional GS1 DataBar, Composite Symbology
Data Buffer
4 KB / 45 Bytes
Paper dimensions (mm)
Roll paper: 79.5 ± 0.5 (W) × Dia. 83
Overall Dimensions (D x W x H)
127 x 127 x 127 mm
Colour

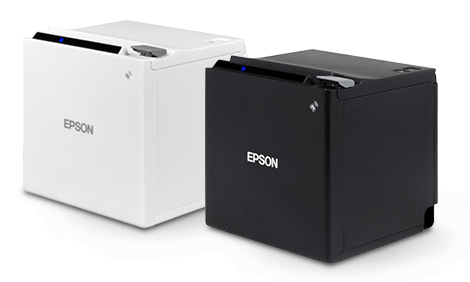

Epson Black (EBCK), Epson Ultra White (ENB9)
Printing Method
Thermal line printing
Dot / Line
576 dots
Dot / Inch
203 dpi
Mass
1200 g {2.64 lb}
Standard Accessories ROM
Roll paper × 1 roll (for checking the initial movement of the printer), Setup guide, Power switch cover, Spacer for 58 mm, External power supply (Model: PS-180)
Easy Setting
Easy connection for Bluetooth – NFC, Easy connection for Bluetooth – Barcode
Sensors
Paper End, Cover Open
Receipt
1.5 million cuts
Interface
Built-in USB + Ethernet 10/100Base-T/TX (Ethernet Model)
Built-in USB + Bluetooth 3.0 (EDR supported) + Ethernet 10/100Base-T/TX (Bluetooth Model)
MTBF
360,000 hours
Power Supply
External power supply (Model: PS-180)
Options
External Buzzer (OT-BZ20); Wall Hanging Bracket (OT-WH30)
MCBF
60 million lines
Supply Voltage
DC + 24 V ± 7 %
Printer Mechanism Life
15 million lines
